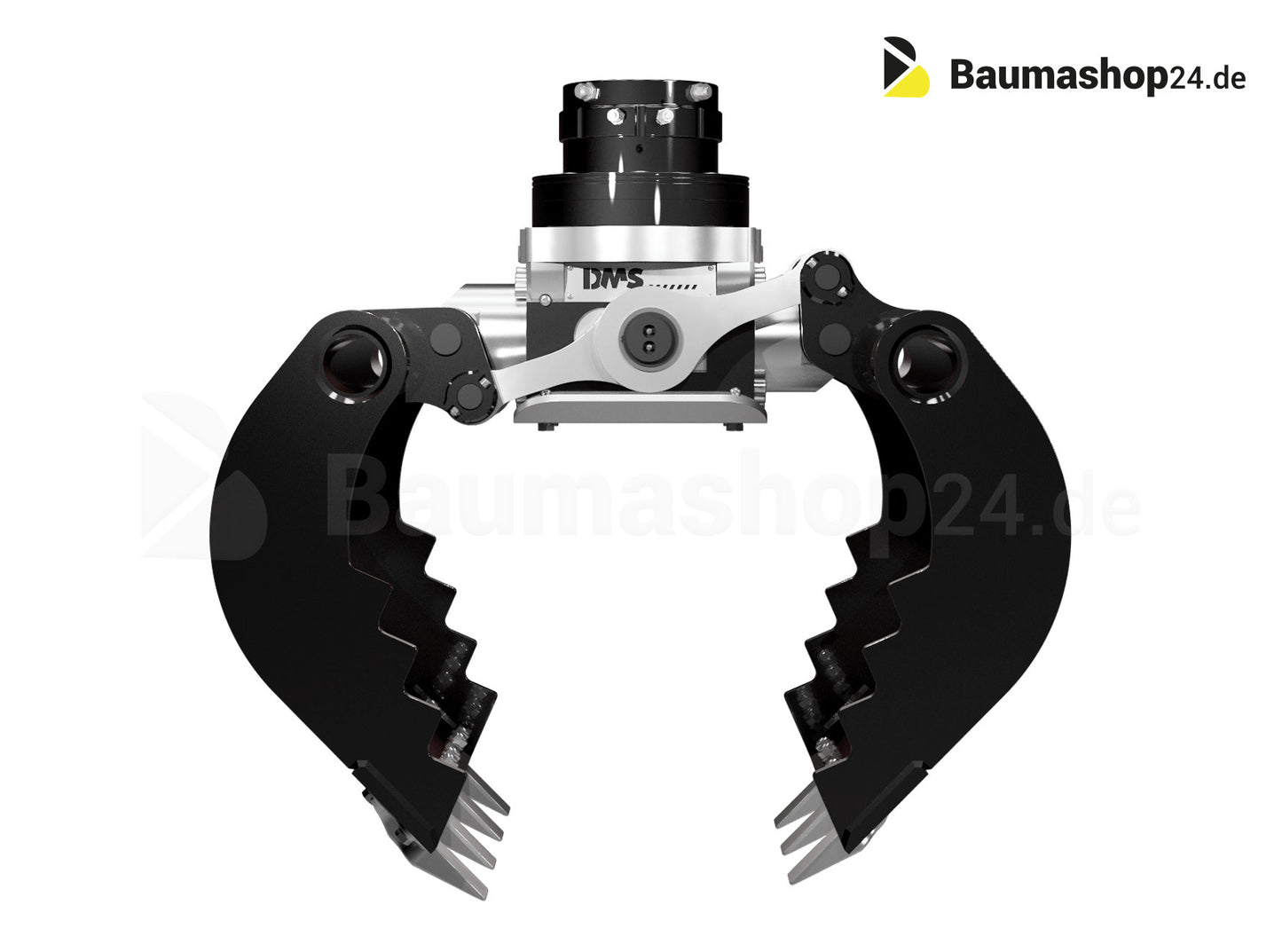

SG22090 Sorting Grapple with Rotator- 17.0 to 22.0 tons

DMS SG22090 sorting grab for weight class 17.0 to 22.0 tons

The range of tasks to be performed with an excavator is constantly expanding . Whether setting natural stones, removing tree roots, loading green waste or moving bulk materials - the DMS sorting grab is used everywhere as an all-rounder .

The supporting element and heart of the gripper, the patented hydraulic cylinder , enables a minimal risk of failure , a low overall height and compactness and a low dead weight with extreme robustness . Increase the utilization of your machine with this versatile attachment while minimizing your work and time.

FYI: The product will be shipped without an adapter plate. If necessary, please feel free to contact us.

>>> Product sheet SG22090 <<<

Technical specifications:

• Weight (without rotator) [kg]: 864
• Rotator weight [kg]: 164
• Operating pressure [bar]: 320
• Closing force [kN]: 52
• Torque [Nm]: 4200
• Filling capacity [l]: 542

>>> Brochure sorting gripper <<<
