Lehnhoff SY03 backhoe - For 3.6 to 5.0 tons - MBL4

Original Lehnhoff bucket MBL4 without teeth in standard quality with MS03 Symlock of 300mm width.

Additional info: Knife 150x16mm made of 400 HB steel, bottom made of S355 steel, screwed fork teeth GW16, with Lehmatic adapter SW 03

The designation MBL4 stands for the weight classes or excavator categories 3.6-5.0t. If your mini excavator has an operating weight between 3.6-5.0 tons and is equipped with a Lehnhoff MS03 quick-change system, then this bucket will fit your excavator.

In this article you can choose between the article numbers 261945, 261946, 261947, 261948 and 261950.

This is the basic variant from Lehnhoff. A premium variant from Lehnhoff can be found under recommendations at the end of the page.

Features of the backhoe bucket:

Cutting width in mm: 300mm

Content SAE in m3: 0.073m3

Teeth (404F): -

Weight (approx.) in kg: 78

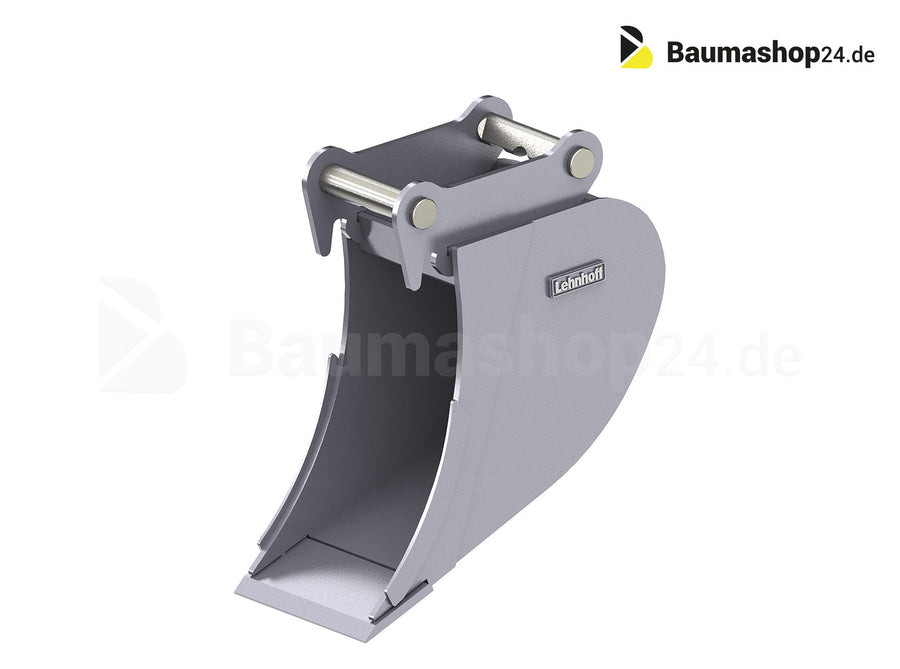

*The image includes a MS quick coupler and is for reference only

Properties of the premium spoon variant

• Good filling properties and easy emptying thanks to the LH double-conical design
• Floor made of 400 HB steel, overhanging with protected weld seam
• Lehborite knife 5000 (500 HB)
• Drop-forged Lehnhoff tooth system
• Optionally with Lehmatic or Symlock adapter
• Incl. spoon transport strap
• Approx. 20% less weight compared to the basic version
• Lower fuel consumption = more economical work

Many spoons available directly from stock - ask for availability!
