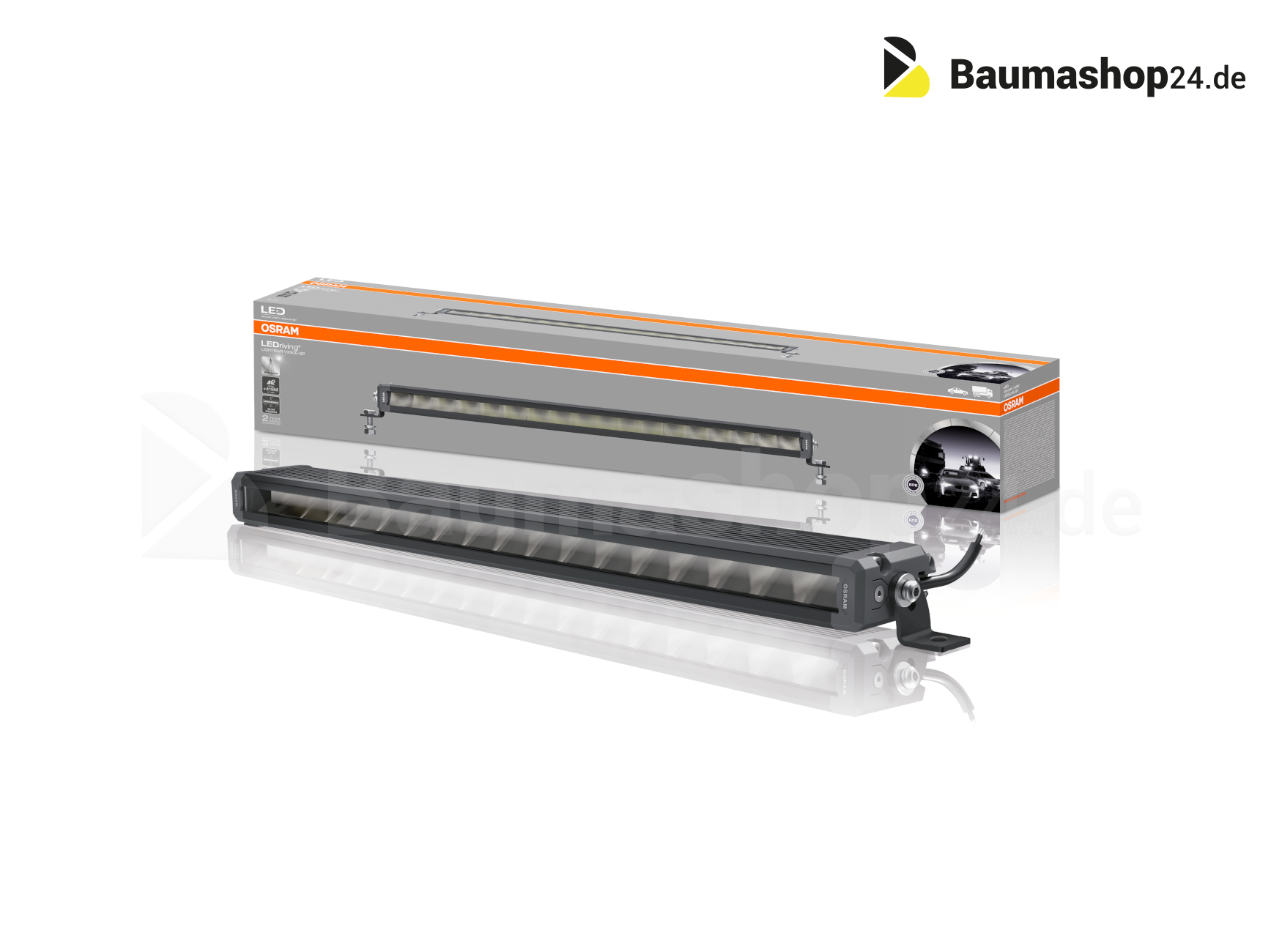

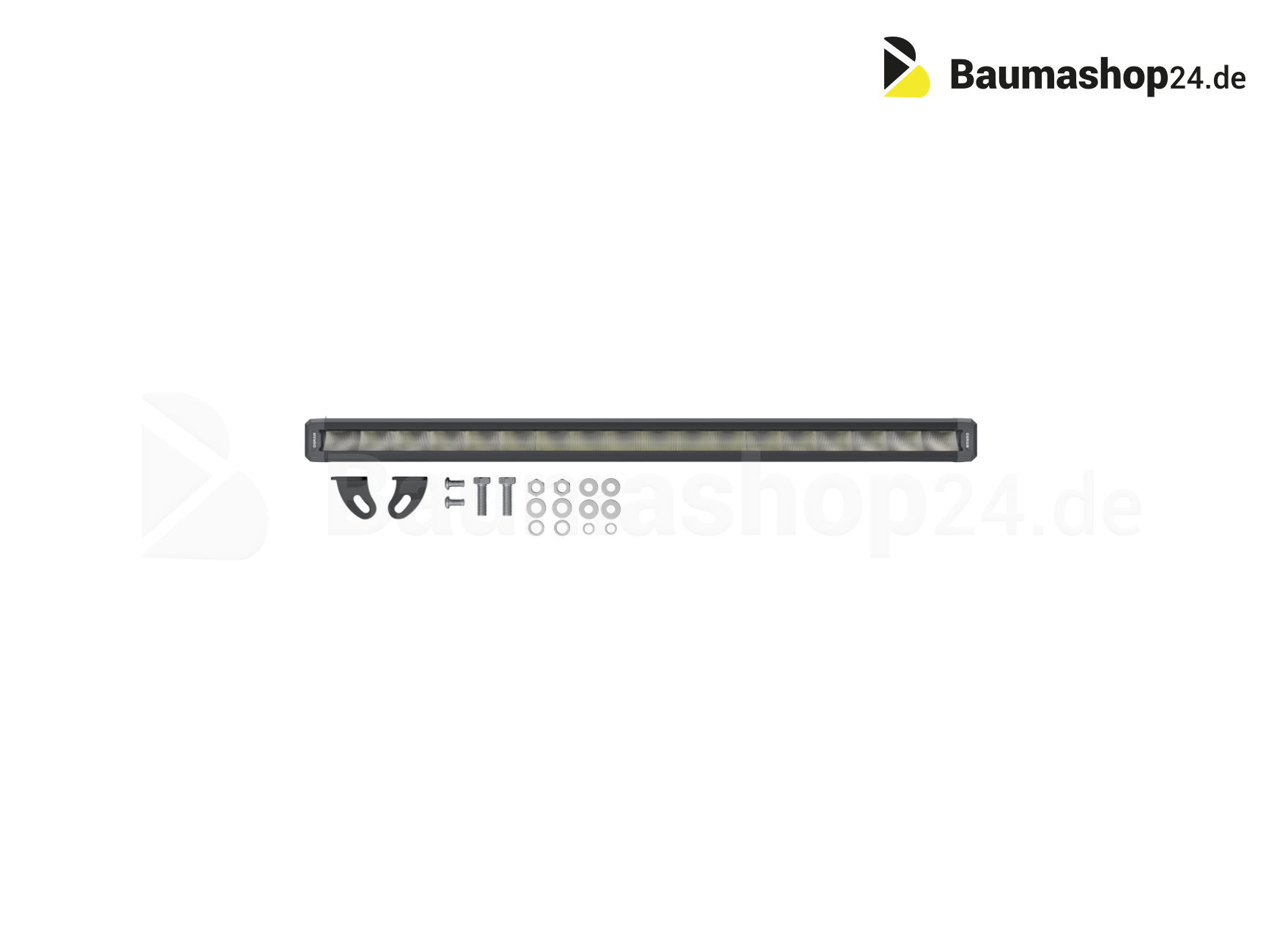

OSRAM Additional and Worklight LEDRIVING® Lightbar VX500-SP

OSRAM Additional and Worklight LEDRIVING® Lightbar VX500-SP

Objective foresight on dark country roads, forest paths and off-road, on-road and off-road-this can be achieved with the Osram LED Riving Lightbar VX500-SP.

Functions:

• ECE certified - ECE R112: The required exams and permits were carried out and an ECE construction type approval was granted. ECE reference number: 50
• Spot Beam: Designed for long -distance lighting. For your focused illumination in the far field of the vehicle.
• Slim design: narrow design for a simple -looking cultivation on the vehicle
• On-road and off-road: versatile and can be used flexibly. On the street and in the field, at work and in leisure time.
• Aluminum housing and frosted -proof disk made of polycarbonate: Particularly light and at the same time robust and resistant
• Integrated heat management system regulates the temperature of the LED headlight and can prevent damage by overheating.
• Integrated polarity protection inhibits the incorrect reversal in voltage supply and can therefore avert damage by automatically switching off the LEDs.

Technical data:

Electrical data:

• Nominal voltage: 12/24 V
• Nominal output 54.00 W
• Test voltage: 13.5 V

Photometric data:

• Light current: 2800 lumens
• Color temperature: 6000 K
• Range: 415 m

Dimensions:

Additional product data:

• Number of LEDs per module: 18
• Lifespan: 5000 hours
• 2 years Osram guarantee (exact conditions: www.osram.de/am-guarantee)
• Product type: additional high beam
• Plug connection to the lamp: cable connection

Certificates & standards:

• Protection class: IP67
• Test mark approval: E4 approval
• Standards: ECE R10, R112

Advantages:

• For this ECE-certified LED addiction headlight, no approval or entry in the vehicle documents is necessary 1)
• The required exams and approvals were carried out and an ECE type approval was given 1)
• linear and homogeneous light distribution
• better view for you and better visibility of your vehicle through other road users and thus more security on the street and in the area
• light and at the same time robust and resistant
• Protection against overheating
• Insensitive to vibrations and the penetration of dust and water
• Simple and reliable cable connection

1) OSRAM LEDRiving® additional headlights are approved according to the ECE regulations and can therefore be installed and operated on public roads. Please note: Special installation regulations apply. In addition to the ECE approval of the product, individual special regulations and laws of the federal states must be observed.

Areas of application:

• Cars
• Trucks
• Agricultural machinery
• Commercial vehicles
• Construction vehicles
• Forest machines
• Caravan
• Off -road vehicle
• Quads
• and much more.
