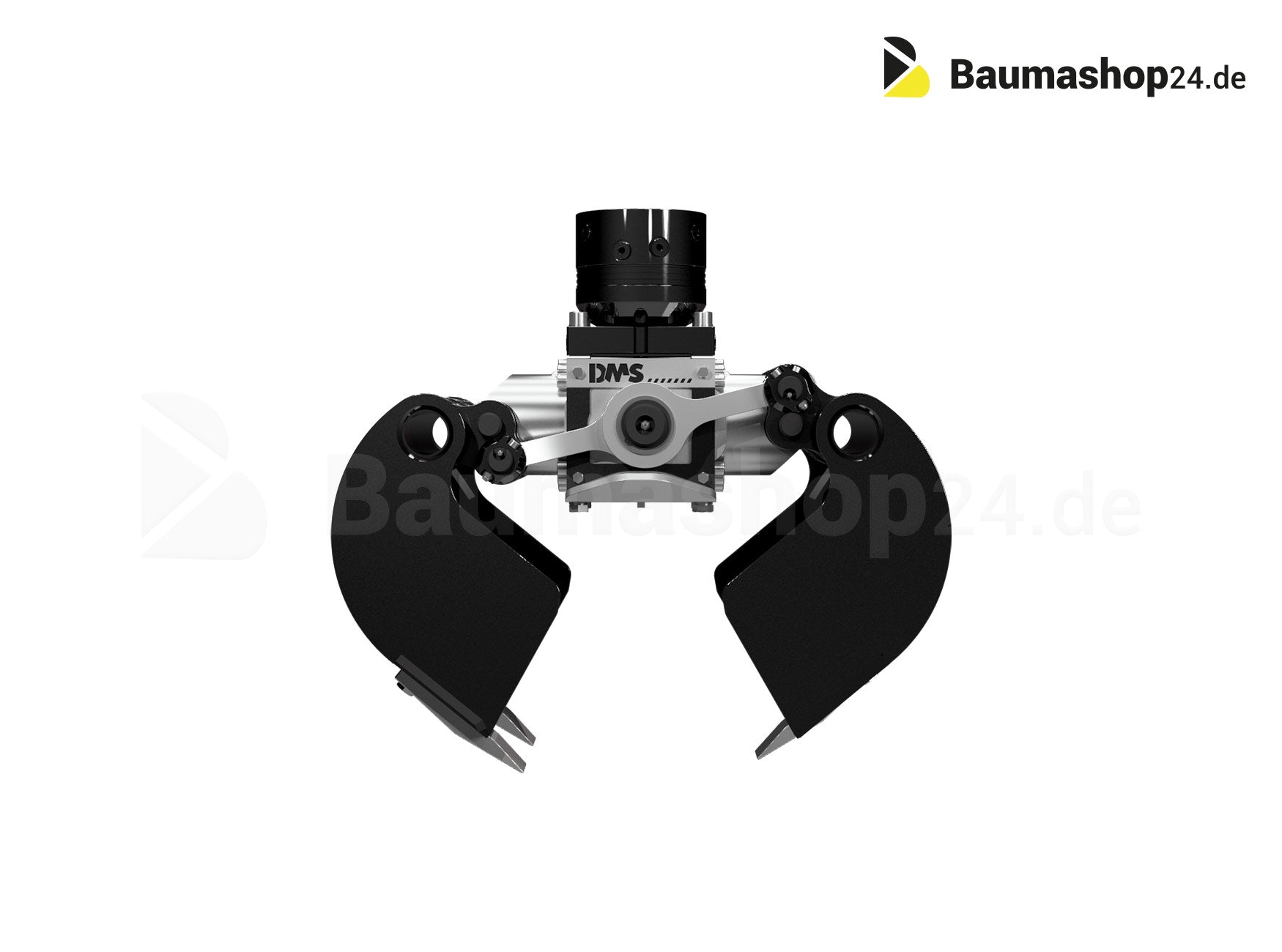

GL3535 grave grave cylinder lying - 2.0 to 3.5 tons

DMS GL3535 grave grave cylinder for weight class 2.0 to 3.5 tons

Popular especially with Work out in gardening and landscaping, at Dig out of trenches and shafts in areas with cramp Place ratios - but also in civil engineering, the grave gripper with lying cylinder for carrier devices of 1-9 tons All -rounder proven.

This is praised by customers Record and place precise From bulk goods and the sensitive Reaction of the gripper, for example with the invasion. When setting cisterns, the combination is used grave gripper and Pipegrip. First, the shaft is dug into a fit, then the cistern with the pipegrips attached. This combination no longer requires a shaft hanger. The grave gripper is both commute and in the fixed extension

For information: The scope of delivery is noted in the product sheet.

>>> Product sheet GL 3535 <<<

Technical data:

• Weight (without rotator) [kg]: 115
• Rotator weight [kg]: 29
• Operating pressure [bar]: 250
• Dockpower [KN]: 16
• Torque [Nm]: 1200
• Fill content [L]: 50

>>> Brochure grave grave <<<

DMS attachments with us in our shop. We have the entire DMS range. If you have not found what you are looking for in our online shop, please contact us.
